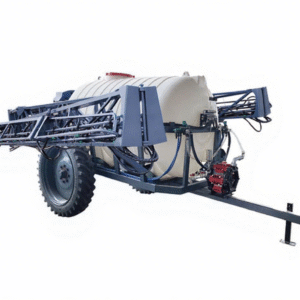

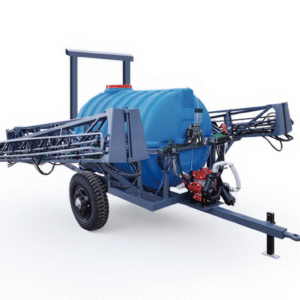

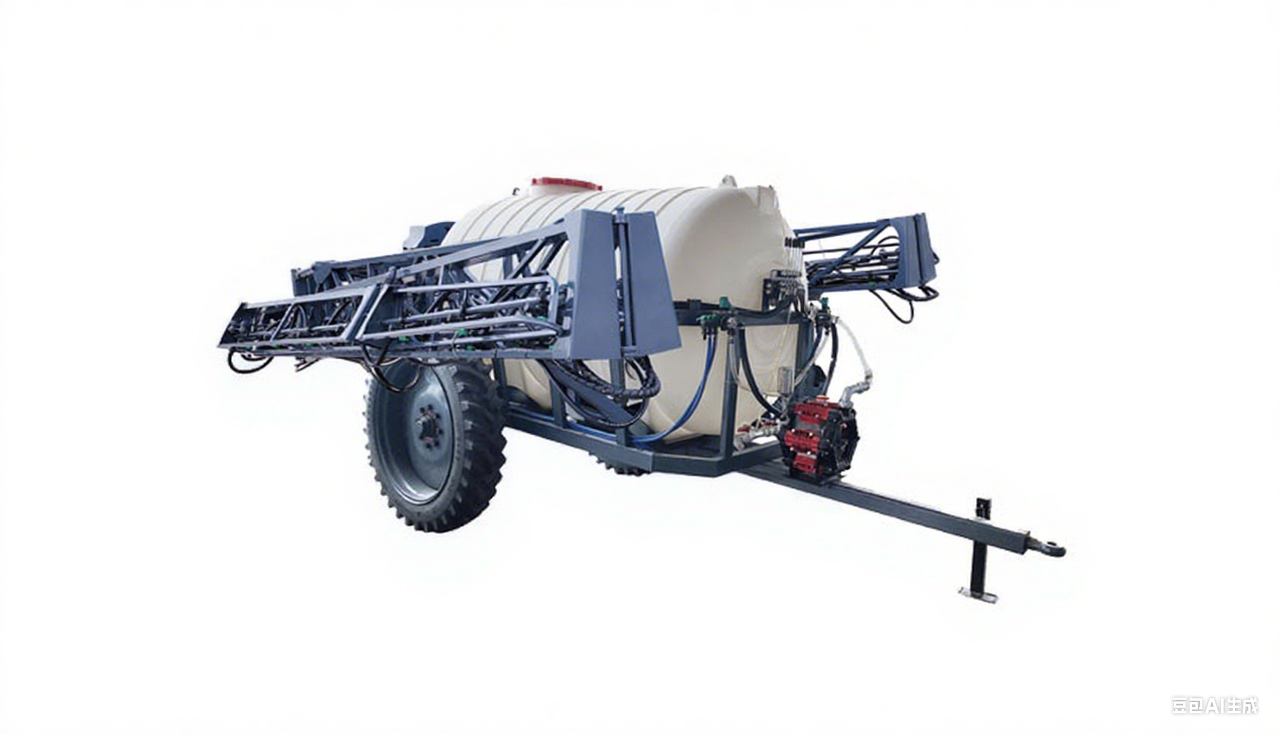

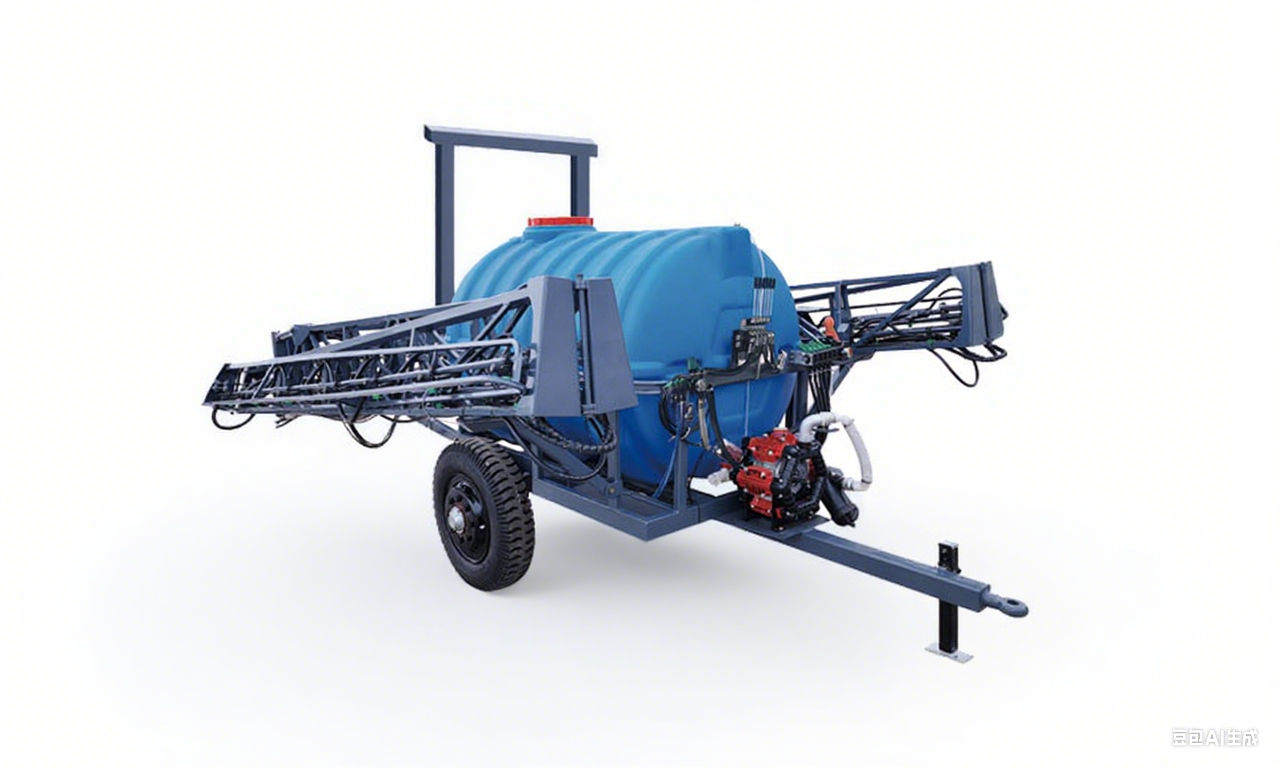

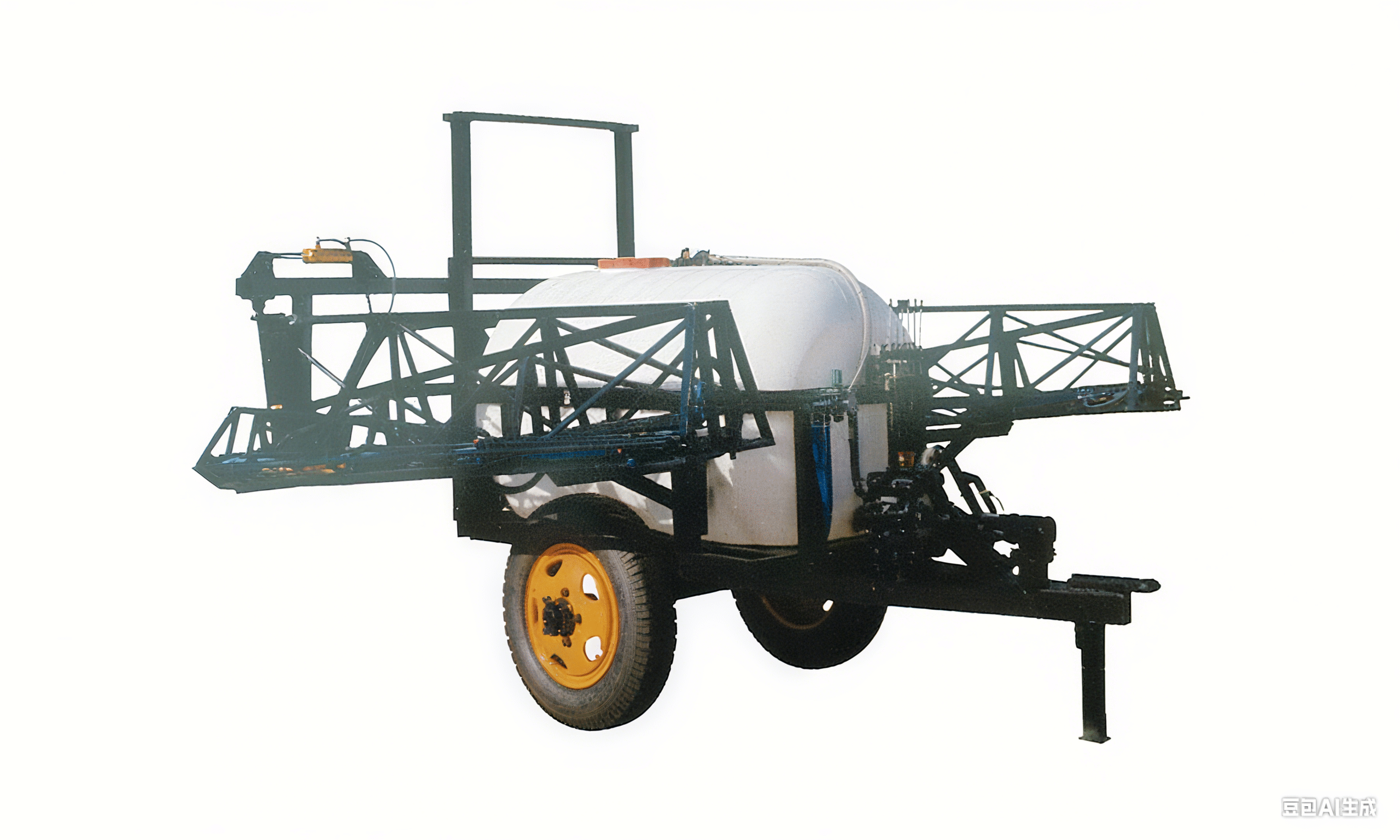

| Equipment Name | Trailed Boom Sprayer | |||
| Model | 3WPO-1000 | 3WPQ-2000 | 3WPQ-3000 | 3WPQ-5000 |
| Engine | 28 HP | 50 HP | 70 HP | 100 HP |
| Pump Type | MB4100 Diaphragm Pump | OS-120 Plunger Pump (Horizontal 3-Cylinder) / MB-6215 Diaphragm Pump | MB6360-3.0 Diaphragm Pump (6-Cylinder) | MB6360-3.0 Diaphragm Pump (6-Cylinder) |
| Tank Capacity | 1000L | 2000L | 3000L | 5000L |
| Boom Width | 17.5 m | 21 m | 23 m | 25 m |
| Number of Boom Sections | 7 Sections | 7 Sections | 7 Sections | 7 Sections |
| Spraying Height | 0.65 – 1.5 m | 0.65 – 1.5 m | 0.65 – 1.5 m | 0.65 – 1.5 m |
| Folding Method | Hydraulic Folding and Lifting | Hydraulic Folding, Lifting, Forward Folding | Hydraulic Folding, Lifting, Forward Folding | Hydraulic Folding, Lifting, Forward Folding |
| Nozzle Type | Single Body (External Flow Type) | Single Body (External Flow Type) | Single Body (External Flow Type) | Single Body (External Flow Type) |
| Spray Angle (Nozzle) | 110° | 110° | 110° | 110° |
| Number of Nozzles | 28 | 32 | 32 | 38 |
| Nozzle Spacing | 0.65 m | 0.65 m | 0.65 m | 0.65 m |
| Agitation Method | Return Flow Agitation | Return Flow Agitation | Return Flow Agitation | Return Flow Agitation |
| Filtration System | 3-Stage | 3-Stage | 3-Stage | 3-Stage |
| System Working Pressure | 0.3 – 0.5 MPa | 0.3 – 0.5 MPa | 0.3 – 0.5 MPa | 0.3 – 0.5 MPa |
| Tire Specification | 7.50-16 Smooth Tread Tires | 7.50-20 Smooth Tread Tires | 9.0-20 Smooth Tread Tires | 11.2-38 Agricultural Tread Tires |
| Wheel Track (Left/Right) | 1.3 m (Adjustable) | 1.3 m (Adjustable) | 1.3 – 1.95 m (Adjustable) | 2.0 – 2.6 m (Adjustable) |
| Ground Clearance | 0.5 m | 0.5 m | 0.5 m | 0.5 m |
| Overall Dimensions (LxWxH) | 3600 × 3000 × 2200 mm | 3600 x 3100 x 2500 mm | 3900 x 3100 x 2500 mm | 4700 x 3500 x 2600 mm |
| Machine Weight | 1050 kg | 1350 kg | 1650 kg | 2100 kg |
