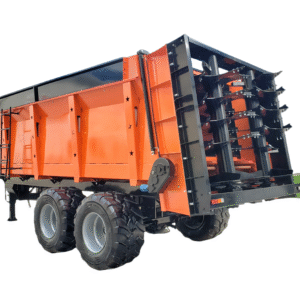

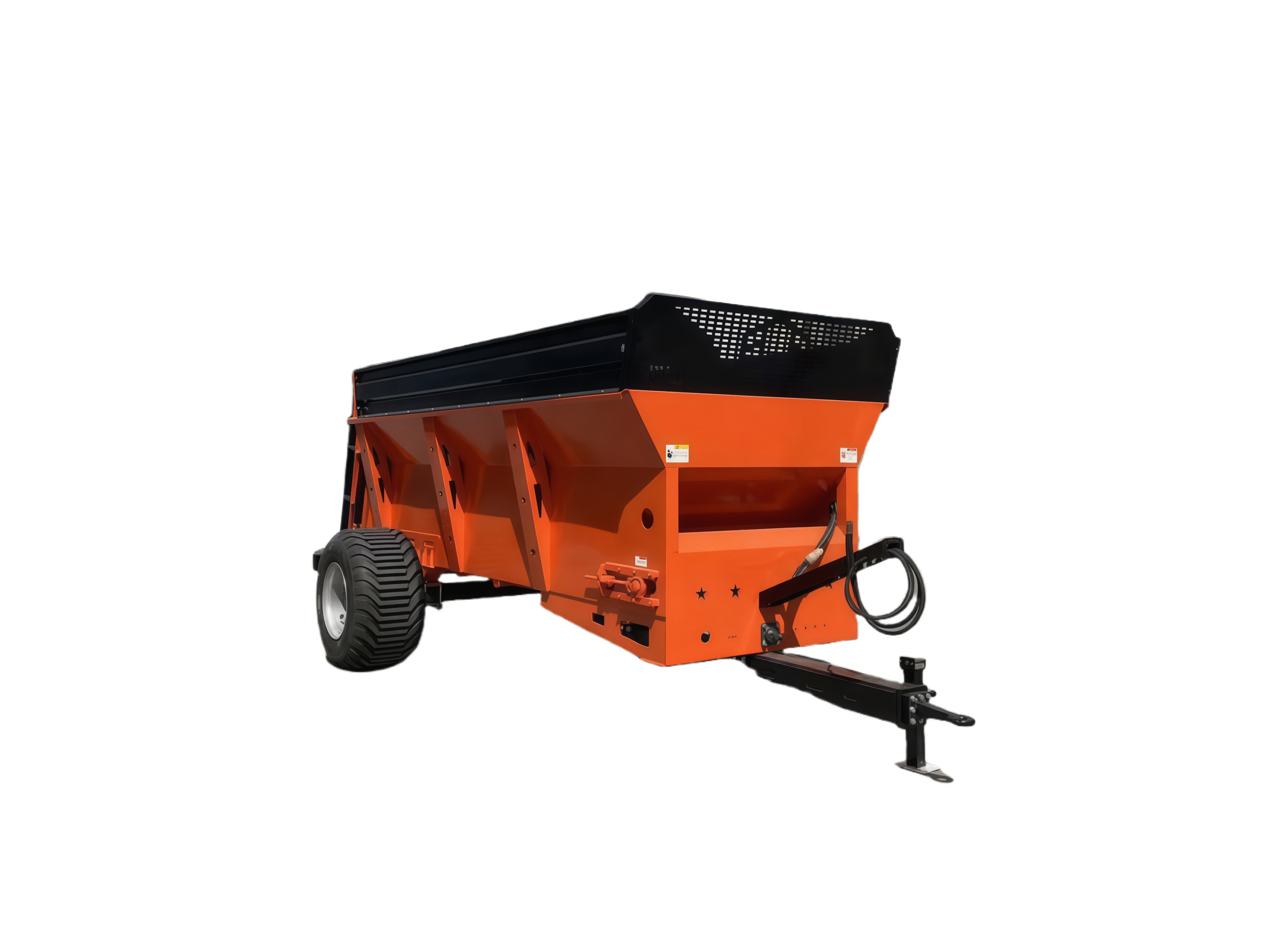

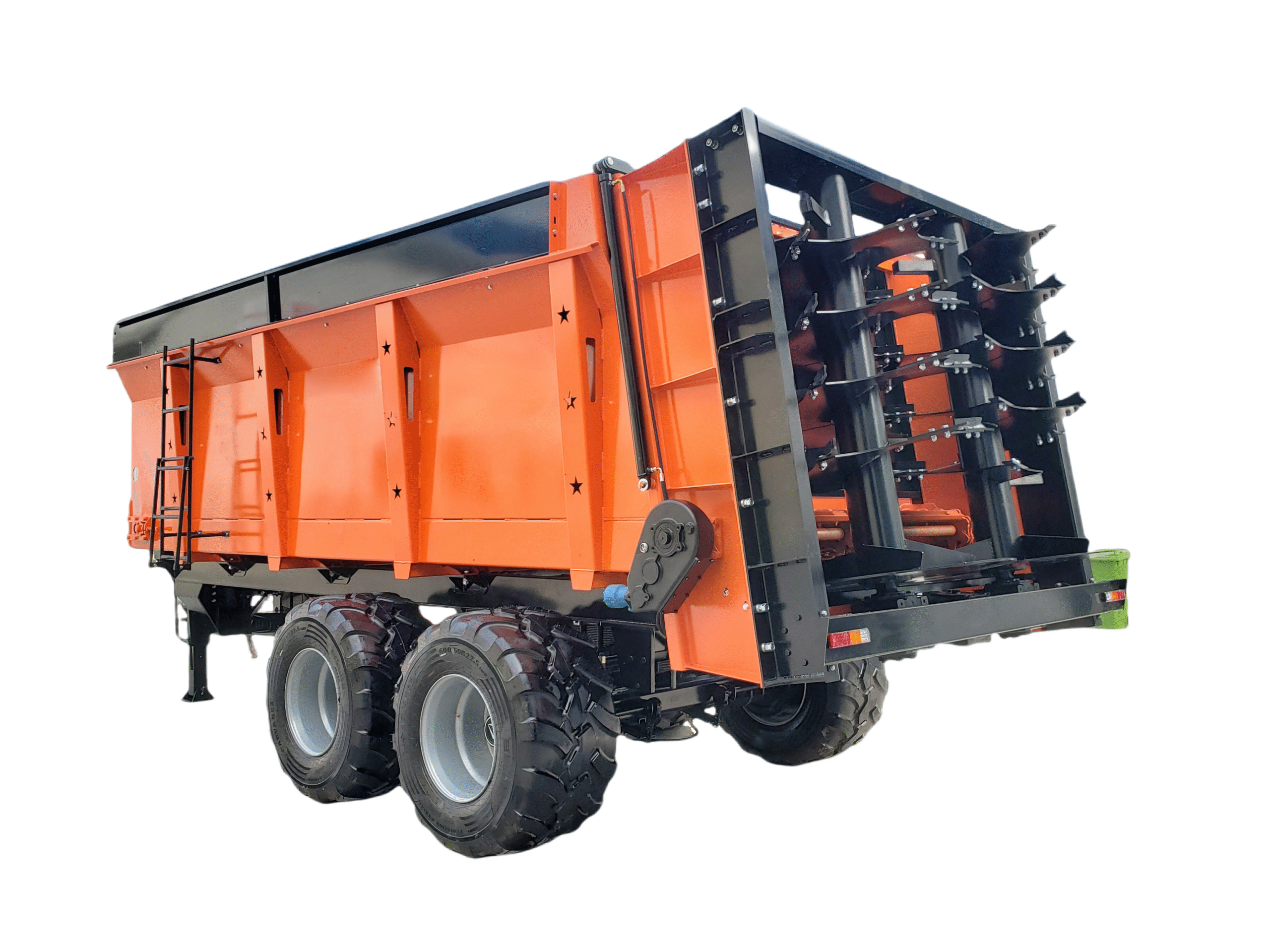

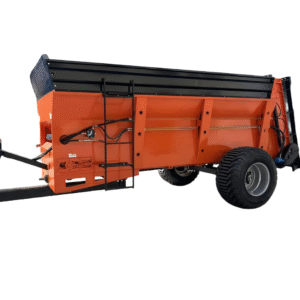

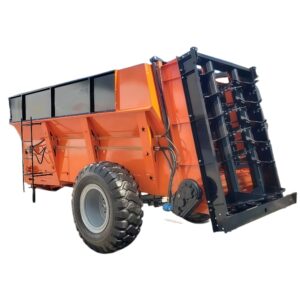

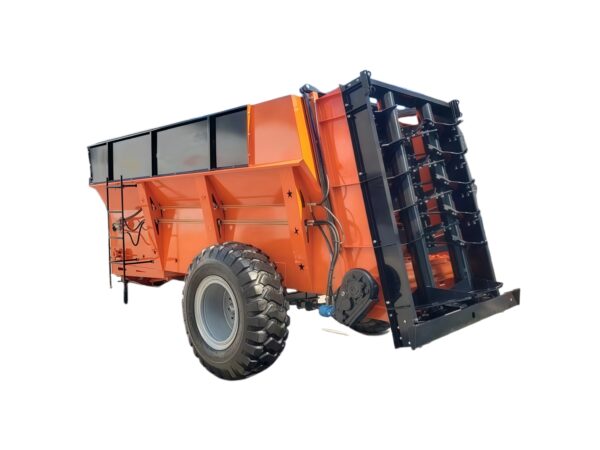

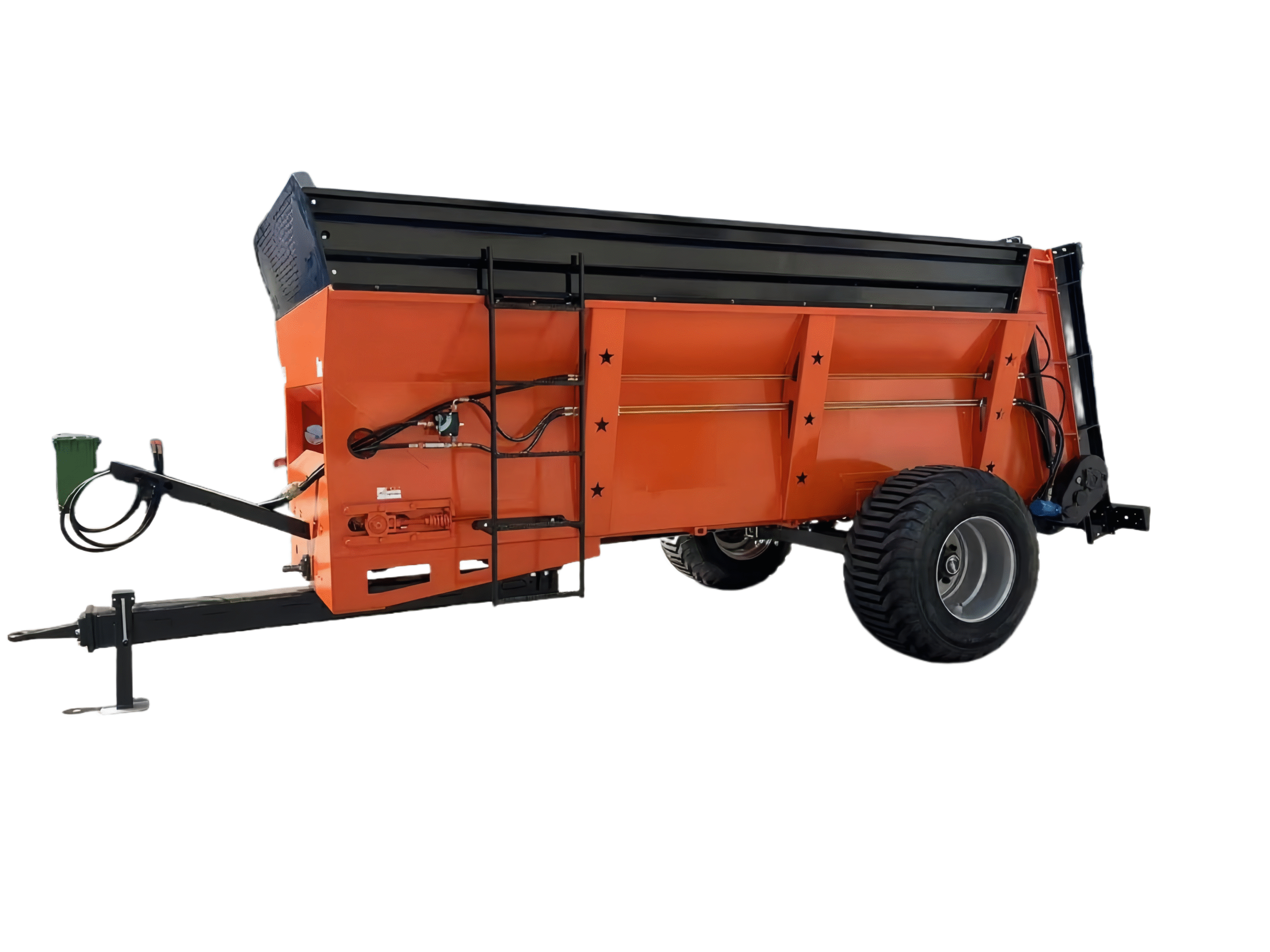

The 2FGH-S Series Dual Vertical Auger Manure Spreader is designed for spreading various types of dry and wet manure, especially high-moisture sticky manure and large clumps. It ensures thorough shredding and even distribution of manure, delivering excellent pulverizing and spreading performance.
This agricultural manure spreader is towed and powered by a tractor. The fertilizer delivery system is directly driven by the tractor’s hydraulic output, which powers the internal conveyor chain to automatically transport manure toward the rear. The speed of manure delivery is adjustable. The manure spreading system is driven by the tractor’s rear power output shaft, which rotates the high-speed dual vertical auger mechanism to crush and evenly distribute the manure. The spreading rate can be adjusted as needed.
This manure spreader is suitable for large farms, ranches, and grasslands for spreading manure and organic fertilizers. It enables large-scale, uniform, and efficient fertilization operations, reduces labor intensity, improves spreading efficiency, saves costs, and delivers various economic benefits.
—
Product Features
1. Dual Vertical Auger System: Driven by a high-quality imported triple gear transmission box, offering stable performance and high reliability. Delivers excellent shredding and spreading performance for sticky and clumpy manure.
2. Manure Conveyor Chain System: Powered by an imported high-torque reduction gearbox, providing stable performance and long service life.
3. Precision Speed Control Valve: Allows adjustment of the conveyor chain speed to meet various spreading requirements.
4. Large-Capacity Discharge Gate: Ensures smooth manure discharge without clogging and allows control over the discharge rate as needed.
5. Enhanced Safety and Anti-Reverse Features: Safety protection devices and anti-reverse mechanisms are added to components like the conveyor chain to prevent damage caused by human error or external forces.
6. Heavy-Duty Design: Conveyor chains and scrapers are built with heavy-duty construction to further improve reliability.
7. Spring Steel Plate Suspension System: Installed at the bottom of the vehicle to absorb shock, enabling safe operation in harsh terrain conditions.
| Model Name | 2FGH-8S Spreader | 2FGH-10S Spreader | 2FGH-12S Spreader | 2FGH-16S Spreader | 2FGH-20S Spreader |
| Structural Type | Box-Type | Box-Type | Box-Type | Box-Type | Box-Type |
| Operating Method | Rear Discharge | Rear Discharge | Rear Discharge | Rear Discharge | Rear Discharge |
| Hopper Net Volume(m³) | 8 | 10 | 12 | 16 | 20 |
| Effective Load Capacity(t) | 8 | 10 | 12 | 16 | 20 |
| Matched Power Rating( hp) | 80-130 | 100-160 | 120-200 | 150-220 | 200-300 |
| Spreading Mechanism Type | Vertical Dual-Auger Spreading | Vertical Dual-Auger Spreading | Vertical Dual-Auger Spreading | Vertical Dual-Auger Spreading | Vertical Dual-Auger Spreading |
| Hitching Type | Tractor-Towed | Tractor-Towed | Tractor-Towed | Tractor-Towed | Tractor-Towed |
| Drive System | Tractor Rear PTO (540 rpm) | Tractor Rear PTO (540 rpm) | Tractor Rear PTO (540 rpm) | Tractor Rear PTO (1000 rpm) | Tractor Rear PTO (1000 rpm) |
| Fertilizer Conveying Method | Hydraulic Chain-and-Slat Conveyor | Hydraulic Chain-and-Slat Conveyor | Hydraulic Chain-and-Slat Conveyor | Hydraulic Chain-and-Slat Conveyor | Hydraulic Chain-and-Slat Conveyor |
| Spreading Width（m） | 8-15 | 8-15 | 8-15 | 10-17 | 10-17 |
| Number of Load-Bearing Axles | 1 axles | 1 axles | 1 axles | 2 axles | 2 axles |
| Tire Specification | 500/60-22.5 | 17.5-25 | 17.5-25 | 500/60-22.5 | 600/50R2.5 |
| Number of Tires(pcs) | 2 | 2 | 2 | 4 | 4 |
| Overall Dimensions
(L x W x H) |
5800 x 2740 x2500 mm | 7000 x 2625 x2620 mm | 7200 x 2625 x2700 mm | 7950 x 2900 x 3280 mm | 8800 x 3000 x 3280 mm |
